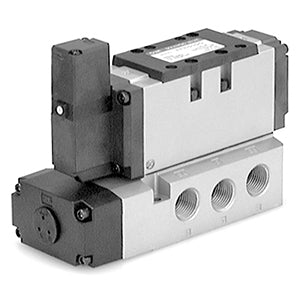

SOLENOID VALVE
Series VFR consists of 5 port pilot solenoid valves with rubber seals and base mounted type manifolds, available in plug-in and non plug-in styles. Port sizes range from 1/8 to 1/2 with Rc(PT), NPTF & G(PF) thread types available. Various options also available.
Features
- VFR5000, plug-in & non plug-in types Maximum operating pressure: up to 0.9MPa Ambient & fluid temperature: Max. 50°C Manual override: non locking push style.
Specifications
- Part number: VFR5310-5DZ-Q
- Item number: 00056595
- Function: 3 (3 Position Closed Centre)
- Model: 1 (Non Plug-in)
- Body Option: 0 (Standard)
- Pilot: Internal Pilot
- Rated Voltage: 5 (24 VDC)
- Lead wire: D (DIN Terminal)
- Surge Suppressor: Z (With light/surge voltage suppressor)
- Manual Override: Non-locking Push Style (Flush)
- Port Specification: Side Ported
- Port Size: w/o Sub-plate
- Thread: Rc
- CE Marked: Q (CE Compliant)
- Lead time: 100 days
- Country of origin: JP
