SMC · Pilot Operated 4/5 Port Solenoid Valves
VFR3110-5DZ-Q
excl. VAT · €194,74 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | VFR3110-5DZ-Q |
|---|

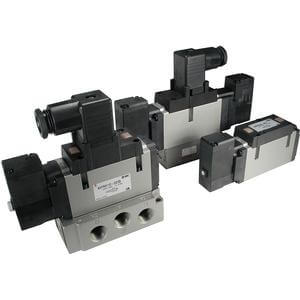

SOLENOID VALVE
Series VFR consists of 5 port pilot solenoid valves with rubber seals and base mounted type manifolds, available in plug-in and non plug-in styles. Port sizes range from 1/8 to 1/2 with Rc(PT), NPTF & G(PF) thread types available. Various options also available.
Features
- VFR3000, plug-in & non plug-in types
- Maximum operating pressure: up to 0.9MPa
- Ambient & fluid temperature: Max. 50°C
- Manual override: non locking push style.
Specifications
- Part number: VFR3110-5DZ-Q
- Item number: 00056508
- Function: 1 (2 Position Single)
- Body Option: 1 (Non Plug-in Common Electrical Entry)
- Option: 0 (Standard)
- Pilot: Internal Pilot
- Voltage: 5 (24VDC)
- Lead Wire: D (DIN Connector)
- Surge Suppressor: Z (Light & Surge Suppressor)
- Manual Override: Non-locking Push Style (Flush)
- Port Size: w/o Sub-plate
- Thread: Rc (PT)(or None)
- Q: Q (CE Marked)
- Lead time: 26 days
- Country of origin: JP
