VFR2000, Plug-in & Non Plug-in Types, Metric | VFR2310-5DZ-Q

SOLENOID VALVE

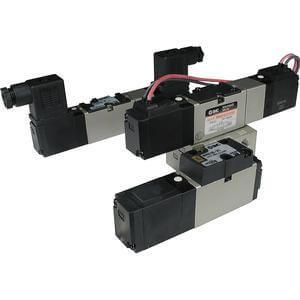

Series VFR consists of 5 port pilot solenoid valves with rubber seals and base mounted type manifolds, available in plug-in and non plug-in styles. Port sizes range from 1/8 to 1/2 with Rc(PT), NPTF & G(PF) thread types available. Various options also available.

Features

• VFR2000, plug-in & non plug-in types
• Maximum operating pressure: up to 0.9MPa
• Ambient & fluid temperature: Max. 50°C
• Manual override: non locking push style.

Specifications

• Part number: VFR2310-5DZ-Q
• Item number: 00056499
• Function: 3 (3 Position Closed Centre)
• Body Option: 10 (Base Mounted Non Plug-in)
• Pilot: Internal Pilot
• Voltage: 5 (24VDC)
• Lead Wire: D (DIN Terminal w/Connector)
• Surge Suppressor: Z (Light & Surge Suppressor)
• Manual Override: Non-locking Push Style (Flush)
• Port Size: w/o Sub-plate
• Thread: Rc (PT)(or None)
• Q: Q (CE Marked)
• Lead time: 22 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
• Operation manual
• Installation manual
