SMC · Tubing
TU1208S1-20
excl. VAT · €98,45 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
Total
Specs
| Fluid | Air, water |
|---|---|
| Max. operating pressure (at 20 / 40 / 60 °C) | 0.8 / 0.65 / 0.5 MPa |
| Vacuum | –101.3 kPa (depends on the fitting used) |
| Temperature, air | –20 to 60 °C |
| Temperature, water | 0 to 40 °C (no freezing) |
| Min. bending radius | 8 mm |
| Part number | TU1208S1-20 |
|---|---|
| Size | 1208 (O.D. Ø12, I.D. Ø8) |
| Color | S1 (Silver) |
| Roll Length | 20 m |
| Reel Length | None |
| Suffix | None |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | US |
| TARIC code | 3917320090 |

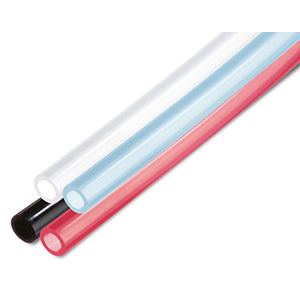

- Series TU tubing represents a new high quality standard in metric size polyurethane tubing. Series TUH, hard polyurethane tubing, is available in a standard or high pressure type and TUS is a soft polyurethane tubing.
Key features
- Applicable tubing O.D.: Ø 2 to Ø 16 mm
- Operating temperature: -20 to 60 °C
- 29 colour variations.
