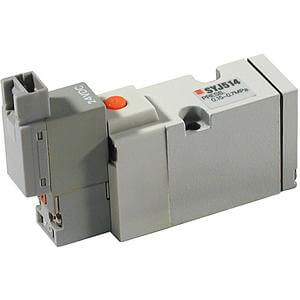

SYJ500, 3 Port Solenoid Valve, All Types | SYJ524M-5G-Q

3 PORT SOLENOID VALVE

The SYJ Valve is an innovative combination of space efficiency and performance superiority which provides real value to the design solution. Whether designed in a manifold or used as a single valve, this small profile increases design flexibility and minimizes space requirements. The SYJ valve utilizes a low power (0.5 watts standard) pilot solenoid design, which dramatically reduces thermal heat generation. This improves performance, decreases operating costs, and allows for direct control by PLC output relays. All electrical connections for SYJ Valves are available with lights and surge suppression. SYJ series valves can be configured on base mounted manifolds, or individually on subplates, creating a variety of solutions to meet your broadest engineering needs.

Features

• Fluid: air Operating pressure range (MPa): 0.15 to 0.7 Ambient and fluid temperature (°C): -10 to 50 (no freezing) Maximum operating frequency (Hz): 5

Specifications

• Part number: SYJ524M-5G-Q
• Item number: 02481234
• Function: 2 (Normally Open)
• Piping: 4 (Base Mounted)
• Body Option: M (Common EXH)
• Specifications: Standard
• Rated Voltage: 5 (24VDC)
• Lead Wire: G (Grommet Lead Wire 0.3 M)
• Cable Length: None
• Surge Suppressor: None
• Manual Override: Non-locking Push Style
• Port Size: w/o Sub-plate
• Thread: Rc
• Bracket: None
• CE Marked: Q (CE Marked)
• Lead time: 27 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
• Installation manual
• CE certificate
• CE certificate 2
• CE certificate 3
