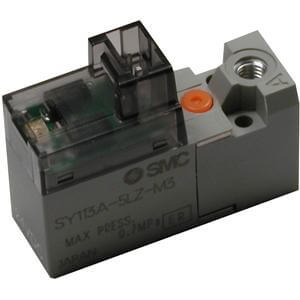

SMC · Pilot Operated 3 Port Solenoid Valves
SY114-5LOU-Q
excl. VAT · €52,36 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | SY114-5LOU-Q |
|---|
Discontinued by SMC. Replacement: V100 Serie
SOLENOID VALVE
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
Features
- Fluid: air
- mm²: 0.14 standard style;
- 0.21 large flow capacity style
- Coil rated voltage: 3, 5, 6, 12, 24VDC;
- 100, 110, 200, 220VAC
- Response time: 10ms or less
- Cycle life: 100 million cycles (by SMC life test)
- Ambient & fluid temperature: max. 50°C
Specifications
- Part number: SY114-5LOU-Q
- Item number: 00023202
- Function: 1 (Normally Closed)
- Piping: 4 (Base Mounted)
- Body Option: Standard
- Voltage: 5 (24VDC)
- Lead Wire: LO (L Plug w/o Connector)
- Surge Suppressor: U (Surge Suppressor w/Light Non-polar)
- Manual Override: Non-locking Push Style
- Port Size: Base Mounted w/o Sub-plate
- Option: None
- Lead time: 5 days
- Country of origin: JP
