SMC · Pilot Operated 4/5 Port Solenoid Valves
SV1300-5FUD
excl. VAT · €121,38 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
Total
| Part number | SV1300-5FUD |
|---|---|
| 5/3 solenoid valve | |
| closed centre | |
| 24 V DC | |
| internally wired | |
| base mounted | |
| LED | |
| noise reduction | |
| bipolar type | |
| manual override | screwdriver type |
| Country of origin | JP |
| TARIC code | 8481209090 |

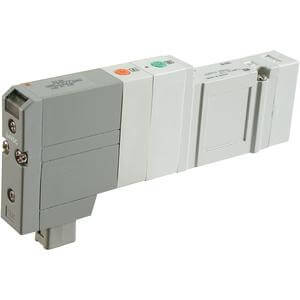

SV1000, 5 Port Solenoid Valve, All Types
Key features
- Fluid: air
- Operating pressure range: -100kPa to 0.7MPa
- Response time ms (at 0.5MPa): 18 or less
- Coil rated voltage: 12, 24VDC
- Ambient & fluid temperature: -10 to 50° C
- Enclosure: IP67 (based on IEC529)
