SMC · Direct Operated 3/4/5 Port Solenoid Valves
S070B-5BCO
excl. VAT · €57,44 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | S070B-5BCO |
|---|

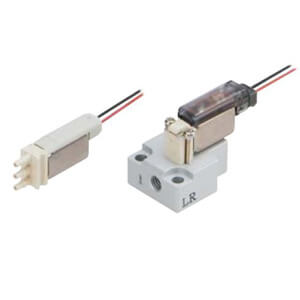

3 PORT SOLENOID VALVE
Series S070 is a super compact direct acting 3/2 port solenoid valve that meets the miniaturisation needs of analysers, medical equipment and semiconductor manufacturing equipment. S070 is extremely lightweight (5g for valve single unit type) and operation noise is 38dB(A) or less. It is easy to increase or decrease the number of stations (stacking base). Valve width is 7mm.
Features
- 3 port solenoid valve, direct operated
- Valve width: 7mm
- Weight: 5g (single unit valve)
- Operation noise: 38dB(A) or less
- Power consumption: 0.35W (std), 0.1W (w/power saving circuit)
Specifications
- Part number: S070B-5BCO
- Item number: 00479978
- Body Style: B (Base Mounted w/Screws)
- Coil Voltage: 5 (24VDC)
- Flow Rate: B (Power Consumption: 0.35W, Operating Press: 0.3 MPa, Cv: 0.011)
- Electrical Entry: CO (Plug Lead w/Light/Surge Suppressor without connector)
- Port Size: w/o Sub-plate
- Made to Order: None
- Lead Wire Length: None
- Lead time: 27 days
- Country of origin: JP
