SMC · Specialty Actuators

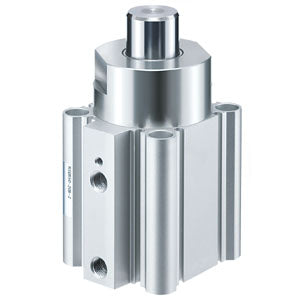

RSDQA50TF-30DZ
excl. VAT · €161,05 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
In stock
| Part number | RSDQA50TF-30DZ |
|---|---|
| Magnet | D (Built-in) |
| Mounting | A (Both Ends Tapped) |
| Bore Size | 50mm |
| Port Thread | TF (Bore 20 |
| Stroke | 30mm |
| Action | D (Double Acting) |
| Rod End | Round Bar Style |
| Mounting Bolt | None |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Made to Order | None |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |
- The RSQ series is a fixed-height stopper cylinder with proven endurance and low breakaway characteristics. The RSG series is an adjustable mounting height stopper cylinder. It can be raised or lowered according to the distance required to stop the work piece. The RSH heavy-duty stopper cylinder is specially designed for use on conveyor lines or other applications requiring an external stopping device.
Key features
- Fixed Height Stopper Cylinder, Double / Single Acting
- Bore sizes (mm): 16, 20, 32, 40, 50
- Strokes up to 30 mm
- 10 rod end configurations available
- Compact auto switch mountable on 4 surfaces.
