SMC · Specialty Actuators

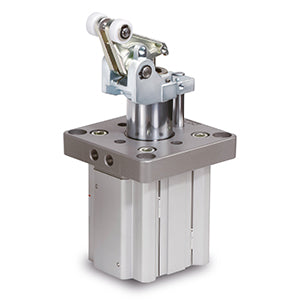

RS2H80TF-40DL-D
excl. VAT · €1.164,62 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | RS2H80TF-40DL-D |
|---|---|
| Shock Absorber | Standard |
| Stroke | 40mm (RS2H80) |
| Action | D (Double Acting) |
| Roller Material | L (Resin) |
| Auto Switch | No Switch |
| Made to Order | Standard |
| Bore Size | 80 mm |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Piping | Flange Side |
| Number | 2 pcs. (Or None in Case of No Switch) |
| Port Thread | TF (G Thread) |
| Option | D (Locking Mechanism) |
| Port and Lever Position | 0° |
| Lead time (days) | 18 |
| Minimum order quantity | 1 |
| Country of origin | CN |
| TARIC code | 8479899790 |
- The RSQ series is a fixed-height stopper cylinder with proven endurance and low breakaway characteristics. The RSG series is an adjustable mounting height stopper cylinder. It can be raised or lowered according to the distance required to stop the work piece. The RSH heavy-duty stopper cylinder is specially designed for use on conveyor lines or other applications requiring an external stopping device.
Key features
- Heavy duty stopper cylinder
- Bore sizes (mm): 50, 63, 80
- Piping available from 2 directions
- Mounting type: flange
- Variety of options available
