SMC · Electro-Pneumatic Control Equipment
PVQ13-6M-08-M5-A
excl. VAT · €96,64 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | PVQ13-6M-08-M5-A |
|---|

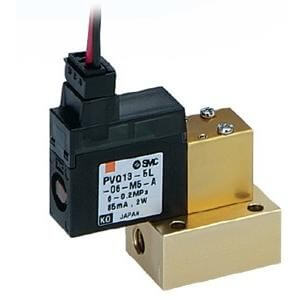

PROPORTIONAL VALVE
Control the flow according to the current
Features
- Control the flow rate up to 6 l/min according to currentRepeatability: 3% or lessHysteresis: 10% or lessBody materials: Brass (C36) and stainless steelReduced noiseSuitable for vacuum applications.
Specifications
- Part number: PVQ13-6M-08-M5-A
- Item number: 00835575
- Voltage: 6 (12VDC)
- Electrical Entry: M (M Plug Connector)
- Lead Wire: Lead Wire
- Orifice Size: 08 (0.8mm)
- Port Size: M5 (w/Sub-Plate M5x0.8)
- Body/Seal Material: A (Body C36, Seal FKM)
- Lead time: 73 days
- Country of origin: JP
Documents
More part numbers in this series
PVQ13-6M-04-M5-A€80,53PVQ13-6LO-03-M5-A€79,02PVQ13-6L-03-A€75,98PVQ13-5MO-06-A€74,46PVQ13-5M-08-A€75,98PVQ13-5M-06-A€75,98PVQ13-5M-03-M5-A€80,53PVQ13-5L-06-A€75,98PVQ13-5L-03-A€75,98PVQ13-6L-04-M5-A€80,53PVQ13-5M-04-M5-A€80,53PVQ13-6L-03-M5-A€80,53PVQ13-5MO-06-M5-A€79,01PVQ13-6M-03-M5-A€80,53PVQ13-6M-06-M5-A€80,53
