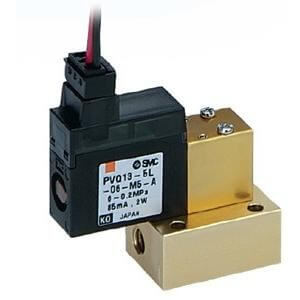

Compact Proportional Solenoid Valve - PVQ10 – PVQ13-5MO-03-A

• Control the flow according to the current

Key features

• Control the flow rate up to 6 l/min according to current<ul><li>Repeatability: 3% or less</li><li>Hysteresis: 10% or less</li><li>Body materials: Brass (C36) and stainless steel</li><li>Reduced noise</li><li>Suitable for vacuum applications.</li></ul>

Specifications

• Voltage: 5 (24VDC)
• Electrical Entry: M (M Plug Connector)
• Lead Wire: O (w/o Lead Wire)
• Orifice Size: 03 (0.3mm)
• Port Size: w/o Sub-Plate w/Mounting Screw
• Body/Seal Material: A (Body C36, Seal FKM)

Additional information

• Part number: PVQ13-5MO-03-A
• Lead time (days): 73
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8481805990

Documents

• Catalogue (PDF)
• CAD model
• Installation manual
• CE certificate
