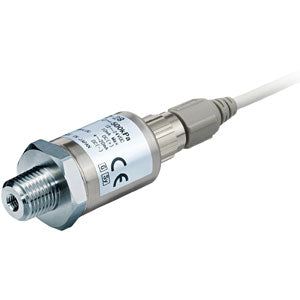

SMC · Vacuum Switches
PSE573-02-N
excl. VAT · €135,86 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | PSE573-02-N |
|---|---|
| OUT1 Output Type | None |
| Output Specifications | Voltage Output (1~5V) Type |
| OUT2 Output Type | None |
| Sensor Range | 3 [For Compound Pressure (-100~100kPa)] |
| OUT2 Hysteresis (H2) | None |
| OUT1 Set Value (P1/n1) | None |
| Port Size | 02 [R1/4 (M5 Female Thread)] |
| OUT1 Hysteresis (H1) | None |
| Lead Wire | N (None) |
| OUT2 Set Value (P2/n2) | None |
| Lead time (days) | 23 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 9026202000 |
- Digital pressure switch
- Pressure rates: up to 10 MPa
- Accuracy: up to 1% F.S.
- Output: IO-Link, NPN/PNP or analogue (Voltage/Current)
- Enclosure up to IP65.
Key features
- Applicable fluids: gas or liquid that will not attack or corrode materials of parts in contact with fluid
- 6 rated pressure ranges: -100 to 100 kPa, 0 to 500 kPa, 0 to 1 MPa, 0 to 2 MPa, 0 to 5 MPa, 0 to 10 MPa
- Proof pressure: 3 times higher than the rated pressure
- Outputs: IO-Link, NPN/PNP and analogue (voltage/current).
- Withstand voltage: 500 V AC
- M12 connector for wiring
- Enclosure: IP65.
