SMC · Flow Sensors
PFMB7202-F06-F
excl. VAT · €383,74 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | PFMB7202-F06-F |
|---|---|
| Rated Flow Range | 202 (20 to 2000 l/min) |
| Thread Type | F (G) |
| Port Size | 06 (3/4) |
| Output Specification | F [1 PNP Outputs + Analog (4 to 20 mA)] |
| Connector | Lead Wire w/Connector (2 m) |
| Unit Specification | Unit Switching Function |
| Option | None |
| Calibration Certificate | None |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 9026802000 |

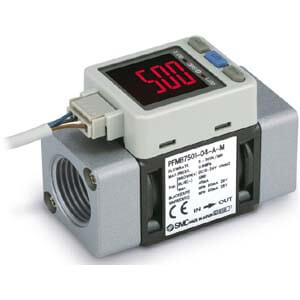

- 2-colour digital flow switch for dry air and N2.
- Large flow rates, up to 2000 l/min.
- Wide measuring range, rangeability: 100:1.
- Quick response: highest speed 0.05 s.
- Compact.
- Flip vertical option to adjust display's orientation.
Key features
- Rated flow range: 5 to 2000 l/min.
- Compact and light weight.
- Digital 2 color indication.
- Integrated flow adjustment valve.
- Several combinations are possible.
- Different mounting methods are possible.
