SMC · Flow Sensors

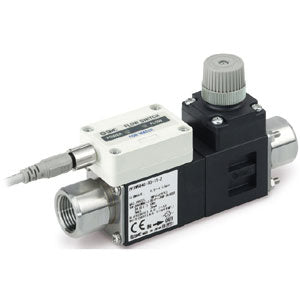

PF3W540-F06-1N-Z
excl. VAT · €517,66 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery time: On request
Need volume pricing or a special version? Request a quote →
Total
| Part number | PF3W540-F06-1N-Z |
|---|---|
| Rated Flow Range | 40 (5 to 40 l/min) |
| Flow Adjustment Valve | W/o Flow Adjustment Valve |
| Thread | F (G) |
| Port Size | 06 (3/4) |
| Output Specification/Temperature Sensor | 1 (Out 1 Flow Rate: Analog 1 to 5 V; Out 2 Temperature: None; Temperature Sensor: None) |
| Lead Wire | N (w/o Lead Wire and M8 Connector) |
| Unit Specification | Instantaneous Flow: L/min, Temperature: °C |
| Bracket | None |
| Calibration Certificate | None |
| Lead time (days) | 23 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 9026102100 |
- Digital Flow Sensors for liquids
- Applicable fluid: Water, Ethylene glycol aqueous solution, Deionized water and diverse Chemical liquids
- Integrated display: 3-colour/2-screen display
- Built-in temperature sensor
- Manifold mounting available
- Flow adjustment valve option
- Rated flow ranges: from 0.5 to 250 l/min
- Output: IO-Link, NPN/PNP or Analogue (Voltage/Current)
- Repeatability: ±0.2 % F.S.
- Consumption: 50 mA or less
- IP65.
Key features
- Compact size.
- Built-in temperature sensor.
- IP65.
