SMC · Flow Sensors

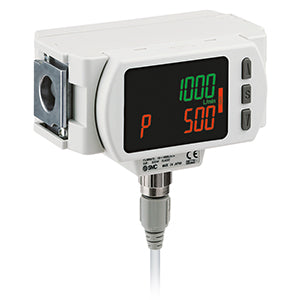

PF3A702H-L4N
excl. VAT · €820,22 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | PF3A702H-L4N |
|---|---|
| Rated Flow Range | 02 (20 to 2000 l/min) |
| Output Specification | L4 [Out: IO-Link, Switch Output (N/P); Func: Analog Current Output <-> External Input; Monitor Unit Model: PFG310 Series] |
| Lead Wire | N (w/o Lead Wire and M12 Connector) |
| Unit Specification | Units Selection Function |
| Calibration Certificate | None, Certificate in both English and Japanese |
| Flow Direction | Left to Right |
| Lead time (days) | 28 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 9026802000 |
- Digital flow switch for large flow
- Applicable fluid: Air, N2
- Flow ratio: 100:1
- Built-in temperature and pressure sensor version available
- Modular type available
- 3-colour 2 or 4-screen display
- Outputs: IO-Link, NPN/PNP and analogue/external input
- Rated flow ranges: from 10 to 12000 l/min
- Repeatability: ±1.0 % F.S.
- IP65.
Key features
- Can be connected to air combination unit.
- Applicable fluid: Air, N2.
- Flow range: Max. 2000 L/min.
- Flow ratio: 100:1.
- 3-colour/ 2-screen display.
- Port Size: 1/4, 3/8, 1/2, 3/4.
- Outputs: NPN/PNP/IO-Link and analogue/external input.
- IP65.
