SMC · Flow Sensors

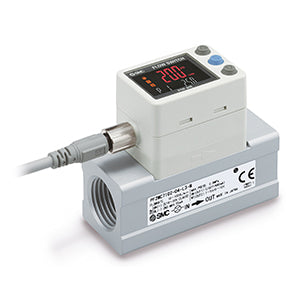

PF2MC7202-F06-L3N
excl. VAT · €509,74 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | PF2MC7202-F06-L3N |
|---|---|
| Rated Flow Range | 202 (20 to 2000 l/min) |
| Thread Type | F (G) |
| Port Size | 06 (3/4) |
| Output Specifications | L3 [Out: IO-Link, Switch Output (N/P); Func: Analog Voltage Output <-> External Input; Monitor Unit Model: PFG300 Series] |
| Option 1 | N (w/o Lead Wire and M8 Connector) |
| Unit Specification | Unit Selection Function |
| Option 2 | No Bracket |
| Calibration Certificate | None |
| Lead time (days) | 28 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8537109199 |
- Series PF2MC digital flow switch provides continuous quantitative feedback visually and over the signal cable. This version has 2 signal outputs. OUT1 is IO-Link compatible, or can provide a switch output when a set point is reached. OUT2 can be a second switch output, or a V or mA analog signal. The PF2MC is suitable for applications requiring a metered quantity of air, such as for spray painting, filling accumulation, or fixed supply consumption. Enhanced features differentiate the PF2MC from the closest related SMC product, the PFMB. The PF2MC display has 2 screens and offers main screen characters in red or green, while the sub screen characters are white. This display can also be rotated for visibility in various orientations, 90° CW or 225° CCW. PF2MC meets IP65 enclosure protection standards and is both RoHS and CE compliant.
Key features
- Outputs: NPN/PNP, analogue (voltage/current), external input and/or IO-Link
- Applicable fluid: dry air, N2
- Flow range: max. 2000 l/min
- Flow ratio: 100:1
- 3-colour/ 3-screen display
- Port Size: 1/2, 3/4
- IP65.
