SMC · Flow Sensors
PF2M750S-C6-E
excl. VAT · €333,90 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery time: On request
Need volume pricing or a special version? Request a quote →
Total
| Part number | PF2M750S-C6-E |
|---|---|
| Digital flow switch with display | |
| 0.5-50l/min | |
| for dry air | |
| operating pressure -0.07- 0.75MPa | |
| flow adj.valve push-in Ø6 | |
| OUT1 | PNP |
| OUT2 | 1-5V 0-10V |
| 2m lead wire with connector | |
| Country of origin | JP |
| TARIC code | 8536501900 |

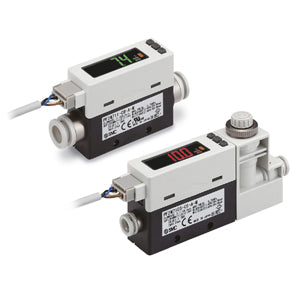

PF2M7, Digital Air Flow Sensor, 2-Color Display, IP40, 0.01-200 Lpm
Key features
- Applicable fluid: dry air, nitrogen, carbon dioxide, argon
- 2-colour display
- Available electrical entry: plug-in connector
- Flow adjustment valve option
- Flow ratio 100:1
- Rated flow ranges: from 0.01 to 200 l/min
- Output: PNP/NPN or analogue (voltage/current)
- Repeatability: ±1.0% F.S.
- Straight or rear ported piping entry direction.
