SMC · Flow Sensors
PF2M750-F1-F
excl. VAT · €306,59 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
Total
| Part number | PF2M750-F1-F |
|---|---|
| Flow switch with display | |
| 0.5-50l/min | |
| dry air | |
| operating pressure | -0.07-0.75 MPa |
| G1/8 | |
| IP40 | |
| OUT1 | PNP |
| OUT2 | 4-20mA |
| cable 2 m | |
| Country of origin | JP |
| TARIC code | 8536501900 |

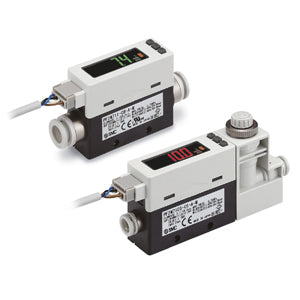

PF2M7, Digital Air Flow Sensor, 2-Color Display, IP40, 0.01-200 Lpm
Key features
- Applicable fluid: dry air, nitrogen, carbon dioxide, argon
- 2-colour display
- Available electrical entry: plug-in connector
- Flow adjustment valve option
- Flow ratio 100:1
- Rated flow ranges: from 0.01 to 200 l/min
- Output: PNP/NPN or analogue (voltage/current)
- Repeatability: ±1.0% F.S.
- Straight or rear ported piping entry direction.
