SMC · Flow Sensors
PF2M721-C8-E-M
excl. VAT · €314,80 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
Total
| Part number | PF2M721-C8-E-M |
|---|---|
| Digital flow switch with display | |
| 2-200l/min | |
| for dry air | |
| operating pressure -0.07- 0.75MPa | |
| push-in Ø8 | |
| OUT1 | PNP |
| OUT2 | 1-5V 0-10V |
| 2m lead wire with connector | |
| Country of origin | JP |
| TARIC code | 8536501900 |

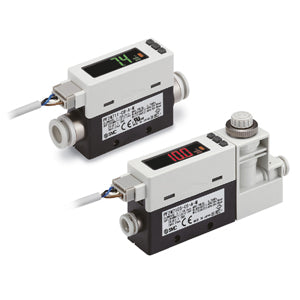

PF2M7, Digital Air Flow Sensor, 2-Color Display, IP40, 0.01-200 Lpm
Key features
- Applicable fluid: dry air, nitrogen, carbon dioxide, argon
- 2-colour display
- Available electrical entry: plug-in connector
- Flow adjustment valve option
- Flow ratio 100:1
- Rated flow ranges: from 0.01 to 200 l/min
- Output: PNP/NPN or analogue (voltage/current)
- Repeatability: ±1.0% F.S.
- Straight or rear ported piping entry direction.
