SMC · Flow Sensors

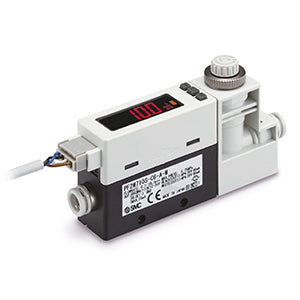

PF2M710-C6-L4
excl. VAT · €317,26 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | PF2M710-C6-L4 |
|---|---|
| Output Specification | L4 (Out 1 |
| Rated Flow Range | 10 (0.1 to 10 L/min) |
| Flow Adjustment Valve | None (Straight) |
| Port Size | C6 (ø6) |
| Unit Specification | Unit Selection Function |
| Bracket/Panel Mount Adapter | No Bracket |
| Calibration Certificate | None |
| Lead Wire | Lead Wire w/Connector |
| Made to Order | None |
| Lead time (days) | 3 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8537109199 |
- Digital flow switch with integrated display
- Applicable fluid: Dry air, nitrogen, carbon dioxide, argon
- 2-colour display
- Flow adjustment valve option
- Flow ratio 100:1
- Rated flow ranges: from 0.01 to 100 l/min
- Output: PNP/NPN, analogue (voltage/current) and/or IO-Link
- Repeatability: ±1.0% F.S.
- Consumption: 35 mA or less.
Key features
- Applicable fluid: Dry air, nitrogen, carbon dioxide, argon
- 2-colour display
- Flow adjustment valve option
- Flow ratio 100:1
- Rated flow ranges: from 0.01 to 200 l/min
- Output: PNP/NPN or analogue (voltage/current)
- Repeatability: ±1.0% F.S.
- Straight or rear ported piping entry direction.
More part numbers in this series
PF2M701-C4-L2€264,38PF2M701-C4-L3€264,38PF2M701-C4-L4€264,38PF2M701-F1-L2€264,38PF2M701-F1-L3€264,38PF2M701-F1-L4€264,38PF2M702-C4-L2€264,38PF2M702-C4-L3€264,38PF2M702-C4-L4€264,38PF2M702-F1-L2€264,38PF2M702-F1-L3€264,38PF2M702-F1-L4€264,38PF2M705-01-EN-X300€372,46PF2M705-C4-L2€264,38PF2M705-C4-L3€264,38
