SMC · Rodless Actuators
MY3B20-2000
excl. VAT · €687,23 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | MY3B20-2000 |
|---|---|
| Style | B (Standard Type-Air Cushion) |
| Bore Size | 20mm |
| Port Thread | Rc: ø25, ø40, ø50, ø63/M thread: ø16 |
| Stroke | 2000 |
| Stroke Adjusting Unit | Left: w/o Unit; Right: w/o Unit |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs.(Or None in the Case of No Switch) |
| Lead time (days) | 6 |
| Minimum order quantity | 1 |
| Country of origin | ES |
| TARIC code | 8479899790 |

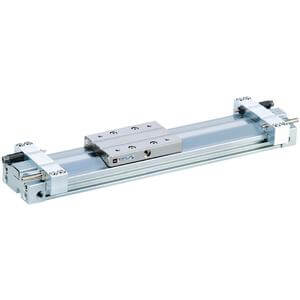

- Mechanically jointed rodless cylinder series MY3 provides high functionality with reduced height and length. The uniquely designed piston shape enables reduction of the height and length as well as practical arrangement of the common piping passages, cushion mechanism and positioning mechanism. This has achieved drastic miniaturization and weight reduction.
Key features
- w/o Stroke Adjustment Unit
- Basic short type (rubber bumper) and Basic standard type (air cushion)
- Applicable bore sizes: 16mm, 20mm, 25 mm, 32 mm, 40 mm, 50 mm and 63 mm
- Easy connection with external guide.
- Vertical and lateral mouting is possible.
- High functionality with reduced height and length.
