SMC · Rodless Actuators
MY1M25TFG-1350
excl. VAT · €990,12 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
Total
| Part number | MY1M25TFG-1350 |
|---|---|
| Mechanically jointed rodless cylinder | |
| Ø25 | |
| stroke | 1350 mm |
| slide bearing | |
| air cushion | |
| ports G1/8 | |
| centralized supply | |
| Country of origin | CZ |
| TARIC code | 8479899790 |

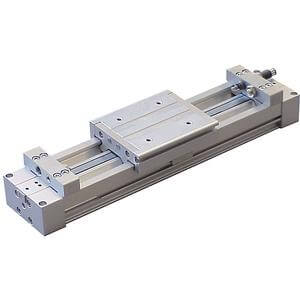

MY1M, Mechanical Joint Rodless Cylinder, Slide Bearing Type w/o Stroke Adjustment
Key features
- w/o Stroke Adjustment Unit
- Mechanical joint rodless cylinder with slide bearing
- Bore sizes: 16, 20, 25, 32, 40, 50, 63 (mm)
- Strokes from 100mm through 2000mm depending upon bore size
- With one or two stroke adjusters with or without shocks
- Variety of switches and a variety of lead wire lengths
