SMC · Rodless Actuators

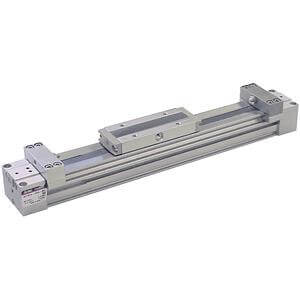

MY1B63TFG-300
excl. VAT · €1.103,05 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | MY1B63TFG-300 |
|---|---|
| Bore Size | 63mm |
| Port Thread | TF (G) |
| Piping | G (Centralized Piping) |
| Stroke | 300 |
| Stroke Adjusting Unit | Left: w/o Unit; Right: w/o Unit |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | ES |
| TARIC code | 8479899790 |
- For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution. The MY1 mechanical joint rodless cylinder includes four standard models, which allow the appropriate bearing style to be selected in order to match the accuracy and load requirements of your application. If necessary, you can also combine the basic MY1 cylinder with an external guide in order to create a special engineered solution. Piping options can be selected according to the application. MY1 is available in 9 bore sizes from 16mm to 100mm. Standard strokes are available up to 2000mm with a 5000mm long stroke option on some bore sizes.
Key features
- w/o Stroke Adjustment Unit
- Mechanical joint rodless cylinder
- Bore sizes: 10, 16, 20, 50, 63, 80, 100 (mm)
- Strokes from 100mm through 5000mm depending upon bore size
- With one or two stroke adjusters with or without shocks
- Variety of switches and a variety of lead wire lengths
