SMC · Guided Actuators

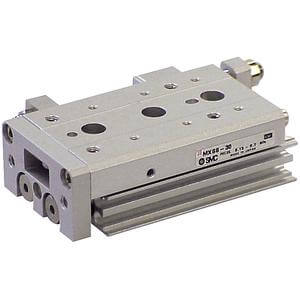

MXS16-100
excl. VAT · €774,36 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | MXS16-100 |
|---|---|
| Bore Size | 16mm |
| Port Thread | Rc |
| Stroke | 100mm |
| Adjuster | w/o Adjuster |
| Function | Standard |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 05 M Lead Wire [Or None in the Case of No Auto Switch] |
| Number | 2 pcs. [Or None in the Case of No Switch] |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |
- Applications that call for precise movement ranging from 10-150mm (1/2-6") typically require a cylinder and a precision guide. The MXS accomplishes this by integrating a cross roller bearing with a guide and two small air cylinders for compact force generation. The MXS is available in six sizes each with set stroke lengths and is standard with auto switch capability. Stroke adjustments are available for extend, retract, or both in ranges of 0-5mm, 0-15mm, and 0-25mm. In addition, there are many other standard options that include, shock absorbers, end lock, axial piping, and buffer.
Key features
- Air slide table
- Bore size: 6, 8, 12, 16, 20, 25 (mm)
- Strokes: 5mm to 150mm, depending upon bore size
- With or without stroke adjuster with or without shock
- Options: buffer, end lock, axial piping
- Variety of switches with a variety of wire lead lengths
