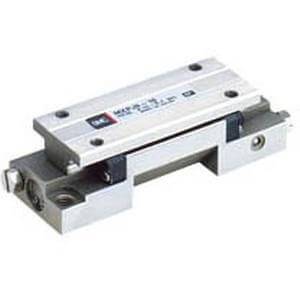

- The MXP is ideal for applications that require high precision movement in short travel situations. The precision slide table has a machined guide with very tight tolerances that operates in conjunction with highly accurate recirculating ball bearings. This slide is capable of achieving parallelism within 0.02mm and non-rotation accuracy as low as 0.03 degrees. Two of the mounting surfaces allow work to be held to a tolerance +/-0.05mm plus the tolerance of the work piece. The slide contains two pistons that operate independently to supply the movement of the actuator.
Key features
- Precision air slide table
- Bore size: 6mm
- Strokes: 5mm and 10mm
- With rubber or metal stopper
Specifications
- Bore Size: Ø6
- Stroke: 10mm
Additional information
- Part number: MXPJ6-10
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
