SMC · Guided Actuators
MXF16-50
excl. VAT · €577,27 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | MXF16-50 |
|---|---|
| Bore Size | 16mm |
| Stroke | 50mm |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Adjustable stroke range | 5mm (Standard) |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |

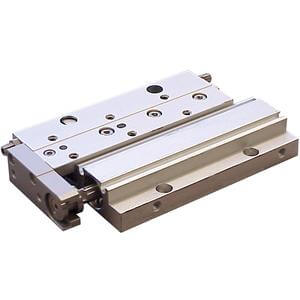

- The MXF is a low profile slide table that utilizes a rigid guide that is mounted parallel to an air cylinder. The actuator is equipped with location holes for quick and easy mounting changes of tools or fixtures. The height of the MXF slide table is 54% to 67% less than the MXS series.
Key features
- Low profile parallel type air gripper
- Bore sizes from 8mm to 20mm
- Dual piston gives high holding force
- 3 stroke selections for each bore
- Auto switch capable
- Highly rigid guide rail
