SMC · Guided Actuators

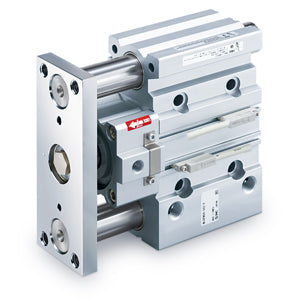

MLGPM63TF-20Z-F
excl. VAT · €697,30 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | MLGPM63TF-20Z-F |
|---|---|
| Bore Size | 63 mm |
| Port Type | TF (G) |
| Stroke | 20 |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Locking Direction | F (Extension Stroke Lock) |
| Auto Switch | No Switch |
| Bearing Style | M (Slide Bearing) |
| Minimum order quantity | 0 |
- Compact guide cylinder
- Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
- Strokes up to 400 mm
- Multiple mounting surfaces.
Key features
- With lock.
- Stopping possible at any stroke position.
- Locking direction selectable.
- Compactness & Lightness.
- Bore size: 40, 50, 63, 80, 100 (mm).
- Strokes from 5 to 350mm (depending upon bore size).
- 4 types of mounting are possible: top mounting, side mounting, bottom mounting and T-slot side mounting.
- Auto switches can be mounted on 2 surfaces.
