SMC · Rotary Actuators

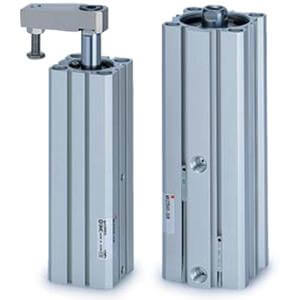

MK2TB25-10L
excl. VAT · €311,00 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | MK2TB25-10L |
|---|---|
| Mounting | B (Through Hole Both Ends Tapped Common) |
| Bore Size | 25 mm |
| Cylinder Port | M Thread |
| Rc | 32 to 63 Bore |
| Stroke | 10 mm |
| Rotation | L (Left Rotation) |
| Body Option | Standard (Female Thread) |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5 m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| X Option | None |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | CN |
| TARIC code | 8479899790 |
- Combining compact cylinder size and rotational capability, the MK2 cylinder is designed for heavy duty clamping applications, with an available integrated arm that swings out of the way when the cylinder is extended. 90deg. clockwise or counter clockwise rotation is available, and clamping arms with adjustment screw are standard options. MK2 is available in 6 bore sizes from 20mm to 63mm and stokes from 10 mm to 50 mm.
Key features
- Larger allowable moment of inertia.
- Horizontal mounting is now possible.
- Anti-rotational and rotational accuracies improved.
