SMC · Grippers & Escapements
MIW32TF-32D
excl. VAT · €705,12 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | MIW32TF-32D |
|---|---|
| Bore Size | 32mm |
| Thread | TF (G) |
| Stroke | 32mm |
| Finger Option | Basic Style (Standard) |
| Stroke Adjusting Unit | No |
| Scraper | No |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |

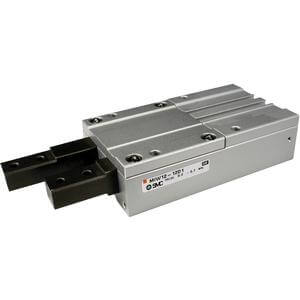

- Series MIW is a slider guide cylinder, with two sequentially operating fingers. The sequential operation uses a mechanically interlocking cam mechanism in addition to control of air passage to the pistons for reliable separation of work pieces. Separation of the piston and fingers allows easy replacement of fingers for maintenance. Three different finger variations make it possible to freely select attachment mounting surfaces on the fingers.
Key features
- Bore sizes: 8, 12, 20, 25, 32 mm
- Stroke lengths: 10, 20, 30, 50 mm
- Scraper option
- Stroke adjuster option
- Auto-switch capable
