SMC · Grippers & Escapements

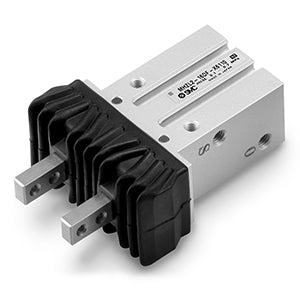

MHZL2-10DS-X6110
excl. VAT · €551,03 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | MHZL2-10DS-X6110 |
|---|---|
| Bore Size | 10mm |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Special Specifications | Basic Type |
| Dust Cover | S (Silicone Rubber(SI)) |
| Auto Switch | No Switch |
| Lead time (days) | 23 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |
- Linear guide for high precision, smooth operation and gripping forces up to 318 N
Key features
- Maximum gripping force per finger 66 N at 0.5 MPa
- Double acting
- Repeatability: ±0.01 mm
- Max. operating frequency: 120 c.p.m.
