SMC · Grippers & Escapements
MHF2-32D2R
excl. VAT · €1.273,66 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | MHF2-32D2R |
|---|---|
| Pneumatic 2-finger low profile air gripper | |
| Ø32 | |
| double acting | |
| opening/closing stroke 128mm | |
| long stroke | |
| side piping type | |
| Country of origin | JP |
| TARIC code | 8479899790 |

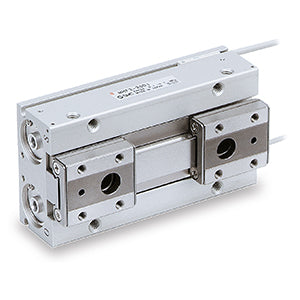

Standard - MHF2
Key features
- Maximum gripping force per finger 141 N at 0.5 MPa
- Double acting
- Repeatability: ±0.05 mm
- Max. operating frequency: 120 c.p.m.
