SMC · Guided Actuators
MGPWM20-100
excl. VAT · €435,02 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | MGPWM20-100 |
|---|---|
| Compact cylinder with wide guides | |
| Ø20 | |
| stroke | 100 mm |
| ports Rc1/8 | |
| slide bearing | |
| rubber bumper cushion | |
| Country of origin | CN |
| TARIC code | 8479899790 |

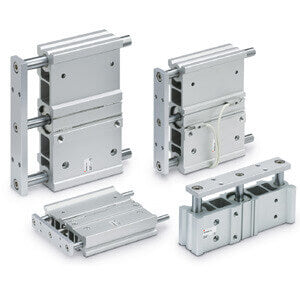

MGPW (ø20 to ø32), Compact Guide Cylinder/Wide type
Key features
- A wide guided cylinder specialised in the stability and moment of large work pieces.
- Plate allowable rotation torque tripled (in comparison with the basic type) by doubling the guide pitch.
- Non-rotating accuracy of the plate is improved (with respect to the basic type) due to the increase in the guide pitch.
- Equivalent weight to the basic type, even though the volume is 170% more than the basic MGP.
