SMC · Guided Actuators
MGPM16-15Z
excl. VAT · €246,01 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
Total
Specs
| Fluid | Air |
|---|---|
| Max. operating pressure | 1.0 MPa |
| Min. operating pressure | 0.1 MPa (0.15 MPa for end-lock versions) |
| Proof pressure | 1.5 MPa |
| Temperature (ambient and fluid) | –10 to 60 °C (no freezing) |
| Part number | MGPM16-15Z |
|---|---|
| Compact guide cylinder | |
| Ø16 | |
| stroke | 15 mm |
| double acting | |
| ports M5 | |
| rubber bumper cushion | |
| slide bearing | |
| Country of origin | CN |
| TARIC code | 8479899790 |

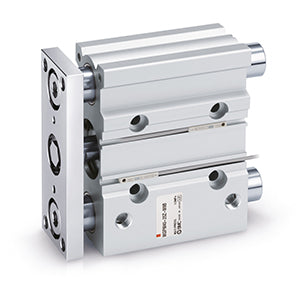

MGP-Z (ø12 to ø32), Compact Guide Cylinder
Key features
- 3 types of bearing can be selected: slide bearing, ball bushing and high precision ball bushing.
- Compactness & Lightness
- Bore size: 12, 16, 20, 25, 32 (mm)
- Strokes from 1 to 400mm (depending upon bore size)
- 4 types of mounting are possible: top mounting, side mounting, bottom mounting and T-slot side mounting.
- Auto switches can be mounted on 2 surfaces.
