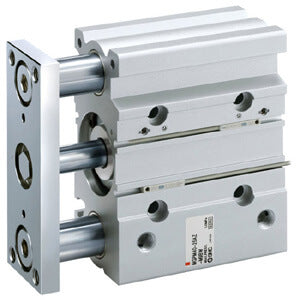

SMC · Guided Actuators
MGPL100TF-200AZ
excl. VAT · €2.112,88 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery time: On request
Need volume pricing or a special version? Request a quote →
Total
Specs
| Fluid | Air |
|---|---|
| Max. operating pressure | 1.0 MPa |
| Min. operating pressure | 0.1 MPa (0.15 MPa for end-lock versions) |
| Proof pressure | 1.5 MPa |
| Temperature (ambient and fluid) | –10 to 60 °C (no freezing) |
| Part number | MGPL100TF-200AZ |
|---|---|
| Bearing Type | L (Ball Bushing) |
| Bore Size | Ø100 mm |
| Port Thread Type | TF [G] |
| Stroke | 200 mm |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m [Or None in the Case of No Switch] |
| Number | 2 pcs. [Or None in the Case of No Switch] |
| Made to Order | None |
| Lead time (days) | 6 |
| Minimum order quantity | 1 |
| Country of origin | CZ |
| TARIC code | 8479899790 |
- Compact guide cylinder
- Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
- Strokes up to 400 mm
- Multiple mounting surfaces.
Key features
- With Air Cushion.
- 3 types of bearing can be selected: slide bearing, ball bushing and high precision ball bushing.
- Compactness & Lightness
- Bore size: 16, 20, 25, 32, 40, 50, 63, 80, 100 (mm)
- Strokes from 10 to 400mm (depending upon bore size)
- Auto switches can be mounted on 2 surfaces.
