SMC · Guided Actuators
MGPA50TF-350Z
excl. VAT · €1.484,77 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | MGPA50TF-350Z |
|---|---|
| Bearing Type | A (High precision ball bushing bearing) |
| Bore Size | Ø50 mm |
| Port Thread Type | TF [G] |
| Lube-retainer | Without Stable Lubrication Function |
| Stroke | 350 |
| Auto Switch | No Switch |
| Lead Wire Length | 0.5m [Or None in the Case of No Switch] |
| Number of Auto Switches | 2 pcs. [Or None in the Case of No Switch] |
| Change of Guide Rod End Shape | None |
| Temperature Resistance | None |
| Low Speed | None |
| Stainless Steel | None |
| Fluororubber Seal | None |
| Grease for Food Processing Equipment | None |
| Lead time (days) | 6 |
| Minimum order quantity | 1 |
| Country of origin | CZ |
| TARIC code | 8479899790 |

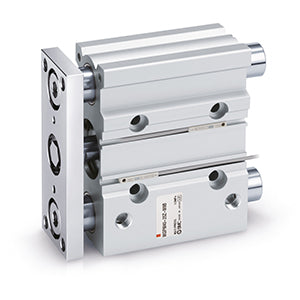

- Compact guide cylinder
- Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
- Strokes up to 400 mm
- Multiple mounting surfaces.
Key features
- 3 types of bearing can be selected: slide bearing, ball bushing and high precision ball bushing.
- Compactness & Lightness
- Bore size: 40, 50, 63, 80, 100 (mm)
- Strokes from 10 to 400mm (depending upon bore size)
- 4 types of mounting are possible: top mounting, side mounting, bottom mounting and T-slot side mounting.
- Auto switches can be mounted on 2 surfaces.
