SMC · Guided Actuators
MGGMB63TF-100
excl. VAT · €2.125,64 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | MGGMB63TF-100 |
|---|---|
| Mounting | B (Basic Style) |
| Bore Size | 63mm |
| Thread | TF (G) |
| Stroke | 100 |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Lead time (days) | 10 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |

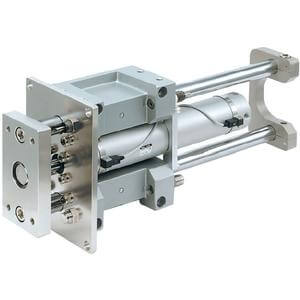

- The series MGG guided cylinder is ideally suited for material handling applications involving stopping, lifting, and pushing. It combines the functions of a conventional cylinder, linear motion guide, and non-rotation device. Features include built-in shock absorbers, finite stroke adjustment, bumpers, and switch capability. Other features include: Slide or ball bushing bearings available, built-in shock absorbers and stroke adjustments, high degree of non-rotating accuracy, and high load capabilities.
Key features
- Slide bearing
- Excellent in abrasion resistance
- Non-lube operation under large load is possible
- Shock absorber, adjusting bolt is standard
- Long stroke is available
