SMC · High Purity Products
LVA20-02F-A-Z
excl. VAT · €431,10 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | LVA20-02F-A-Z |
|---|---|
| Body Class | 2 (Class 2, Orifice ø4) |
| Valve Type | 0 (Normally Closed) |
| Port Size | 02 (1/4) |
| Thread | F (G) |
| Material | A (Body: SUS, Endplate: PPS, Diaphragm: PTFE) |
| Option | None |
| Specification | None |
| Z | Z (Pilot Port Thread 1/8) |
| Lead time (days) | 23 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481808790 |

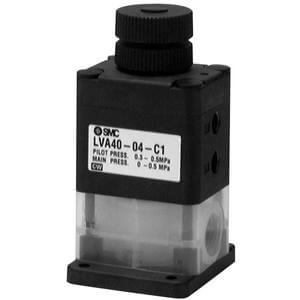

- SMC high purity series LVA valve has three types of body materials (SUS/PPS/PFA) that can be selected based on the customers application. Special diaphragm construction insures gentle opening and closing that prevents the formation of micro-bubbles. A unique guide ring on the piston rod eliminates lateral motion of the poppet, greatly increasing seal life and reducing particle formation.
Key features
- High purity chemical valve, single type
- Threaded ports, air operated type
- Operating pressure: 0.3 ~ 0.5 MPa
- Fluid temperature: 0 to 100°C
- Port sizes: 1/8, 1/4, 3/8, 1/2, 3/4, 1
