SMC · Process Pumps
LSP131-5A4
excl. VAT · €306,41 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | LSP131-5A4 |
|---|---|
| Dispense Volume | 3 (100 to 200 μL) |
| Type | 1 (Body Ported) |
| Rated Voltage | 5 (24 VDC) |
| Fluid Contact Material | A (Body: PEEK; Diaphragm: EPDM; Check Valve: EPDM) |
| Port Size | 4 (Tube Connection Type) |
| Lead time (days) | 19 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8413508090 |

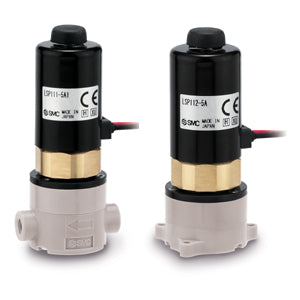

- Liquid dispense pump
- Dispense volume up to 200 µl
- Repeatability: ±1%
- Adjustment of dispense volume is possible
- Shut-off function
- Self-contained system.
Key features
- Dispense volume up to 200 µl.
- Repeatability: ±1%.
- Adjustment of dispense volume is possible.
- Shut-off function.
- Self-contained system.
