SMC · Flow Sensors

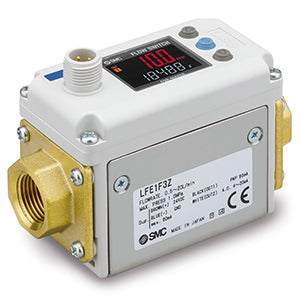

LFE1F4F1Z
excl. VAT · €917,64 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | LFE1F4F1Z |
|---|---|
| Rated Flow Range | 1 (0.5 to 20 L/min) |
| Output Specifications | F (OUT 1: PNP; OUT 2: Analog 4 to 20 mA; Integrated Display Type) |
| Port Size | 4 (1/2) |
| Thread | F (G) |
| Option | 1 (L/min Unit Specification) |
| Insulated Type | Z (Insulated Type) |
| Lead time (days) | 28 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8537109199 |
- Digital electromagnetic flow switch
- Applicable fluid: water, water-soluble coolant
- 3-colour display
- Flow ratio: 40:1
- Rated flow ranges: from 0.5 to 200 l/min
- Response time can be selected from 0.25, 0.5, 1, 2, and 5 sec
- Very low pressure loss: 0.02 MPa or less
- Flow direction can be changed after installation.
Key features
- Applicable fluid: water, water-soluble coolant
- Rated flow ranges: from 0.5 to 200 l/min
- Port sizes: 3/8, 1/2, 3/4, 1
- Outputs: NPN/PNP and analogue (voltage or current)
- IP65
- Insulated and non-insulated types available
- Integrated and remote display types available.
