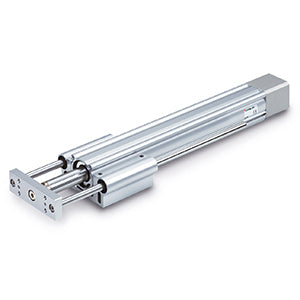

Standard Type - LEYG | LEYG32MDNZA-30

A rod type with guide newly added Compatible with slide-bearing and ball-bushing bearing Compatible with moment load and stopper (slide bearing) Speed control/Positioning: Max. 64 points Positioning and pushing control can be selected Direct mounting: 3 directions.

Features

• Body size: 25 and 32 mm.
• Stroke: 30 to 300 mm.
• Compatible with several motors: OMRON, Siemens AG, Beckhoff automation and more.

Specifications

• Part number: LEYG32MDNZA-30
• Article no.: 01484783
• Accuracy: Basic Type
• Stroke: 30 mm
• Motor Mounting Position: D (In-line)
• Size: 32
• Bearing Type: M (Slide Bearing)
• Motor Type: NZ (Mounting Type Z)
• Lead Screw: A [LEYG25, 12mm; LEYG32, 16mm, (20)]
• Guide Option: Without Option
• Lead time: 10 days
• Country of origin: JP

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
