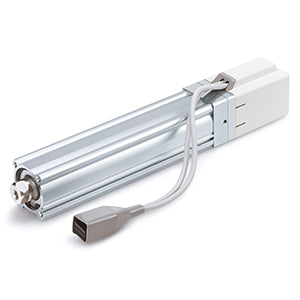

Battery-less Absolute Encoder Type - LEY | LEY40DEA-100C-R5C9F8

Optimal for standard applications

Features

• Body size: 16, 25, 32 and 40 mm
• Stroke: 30 to 500 mm
• Step motor type.

Specifications

• Part number: LEY40DEA-100C-R5C9F8
• Mounting: 8 (DIN Rail)
• Stroke: 100 mm
• Rod End Thread: Rod End Female Thread
• Motor Mounting Position: D (In-line)
• Size: 40
• Lead: A (Size 16: 10 mm, Size 25: 12 mm, Size 32/40: 16 mm)
• Motor Option: C (w/Motor Cover)
• Communication Plug Connector, I/O Cable: None
• Actuator Cable Type, Length: R5 (5m)
• Controller: C9F (EtherNet/IP™ with STO Sub-Function)

Documents

• Catalogue
• CAD model (STEP)
• Operation manual
• CE certificate
