SMC · Rod Types

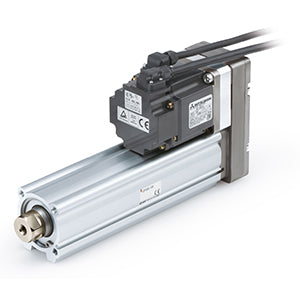

LEY32DT7A-100-R59D21
excl. VAT · €3.224,78 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | LEY32DT7A-100-R59D21 |
|---|
Simplicity of installation and operation Locking mechanism for drop prevention Pre-set controller parameters.
Features
- Body size: 25, 32 and 63 mm
- Stroke: 30 to 800 mm
- AC Servo Motor, 100/200/400W.
Specifications
- Part number: LEY32DT7A-100-R59D21
- Stroke: 100 mm
- Motor Mounting Position: D (In-line type)
- Size: 32
- Actuator Cable type: R (Robotic Flexible Cable)
- Cable length: 5 (5m)
- Controller Type: 9D2 (LECSND2-T-9/EtherNet/IP™, 200V to 240V)
- Motor Option: w/o Lock
- Mounting: Both Ends Tapped (Standard)
- I/O Connector: 1 (1.5 m)
- Accuracy: Basic Type
- Dust/Drip Proof: (25/32) IP4x; (63) IP5x (Dust Proof Specification)
- Motor Type: T7 (200W Output, Absolute Encoder, LECSS2)
- Lead Screw: A [LEY25: 12mm; LEY32: 16mm; LEY63: 20mm]
- Rod End: Rod End Female Thread
