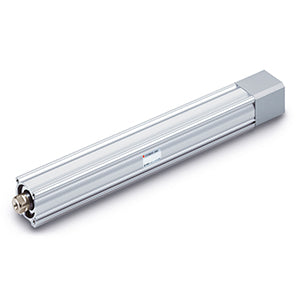

Standard Type - 100/200/400W - LEY | LEY32DNZA-200

Simplicity of installation and operation Locking mechanism for drop prevention Pre-set controller parameters.

Features

• Body size: 25, 32 and 63 mm.
• Stroke: 30 to 800 mm.
• AC Servo Motor, 100/200/400W.
• Compatible with several motors: OMRON, Siemens AG, Beckhoff automation and more.

Specifications

• Part number: LEY32DNZA-200
• Article no.: 01176895
• Mounting: Ends Tapped/Body Bottom Tapped
• Accuracy: Basic Type
• Stroke: 200 mm
• Dust/Drip Proof: Size 25, 32: w/o Enclosure; Size 63: IP5x, Dust Proof Specification
• Rod End Thread: Rod End Female Thread
• Motor Mounting Position: D (In-line)
• Size: 32
• Motor Type: NZ (Mounting Type Z)
• Lead Screw: A [LEY25, 12mm; LEY32, 16mm, (20); LEY63, 20mm]
• Lead time: 10 days
• Country of origin: JP

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
