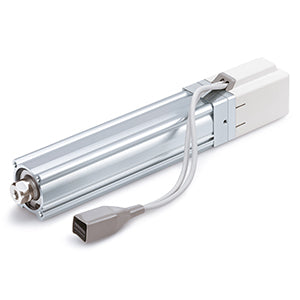

Standard Type - LEY | LEY25DA-400C-R5CL18

Optimal for standard applications

Features

• Body size: 16, 25, 32 and 40 mm
• Stroke: 30 to 500 mm
• Step and servo motor types.

Specifications

• Part number: LEY25DA-400C-R5CL18
• Article no.: 02956604
• Stroke: 400 mm
• Rod End Thread: Female
• Motor Mounting Position: D (In-line)
• Motor: Step Motor (Servo 24 VDC)
• Size: 25
• Motor Option: C (w/Motor Cover)
• I/O cabling for LEC controllers: Without Cable
• Controller: C (JXC, Step Motor Controller)
• Actuator Cable Length: 5 (5m)
• Actuator Cable: R (Robotic Flexible Cable)
• I/O cabling for JXC Controllers & communication plug connector: None
• Mounting: Both Ends Tapped (Standard)
• Controller Mounting: 8 (DIN Rail)
• Suffix: 1 (For Single Axis)
• Lead Screw: A (Size 16: 10 mm, Size 25: 12 mm, Size 32/40: 16 mm)
• Protocol: L (IO-Link)
• Lead time: 23 days
• Country of origin: JP

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
• Operation manual
• Operation manual 2
• Installation manual
