SMC · Rod Types

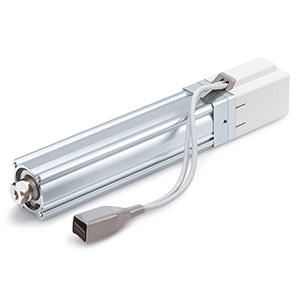

LEY25DA-100C-R5CP18
excl. VAT · €1.700,80 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | LEY25DA-100C-R5CP18 |
|---|
Optimal for standard applications
Features
- Body size: 16, 25, 32 and 40 mm
- Stroke: 30 to 500 mm
- Step and servo motor types.
Specifications
- Part number: LEY25DA-100C-R5CP18
- Article no.: 02417838
- Stroke: 100 mm
- Rod End Thread: Female
- Motor Mounting Position: D (In-line)
- Motor: Step Motor (Servo 24 VDC)
- Size: 25
- Motor Option: C (w/Motor Cover)
- I/O cabling for LEC controllers: Without Cable
- Controller: C (JXC, Step Motor Controller)
- Actuator Cable Length: 5 (5m)
- Actuator Cable: R (Robotic Flexible Cable)
- I/O cabling for JXC Controllers & communication plug connector: None
- Mounting: Both Ends Tapped (Standard)
- Controller Mounting: 8 (DIN Rail)
- Suffix: 1 (For Single Axis)
- Lead Screw: A (Size 16: 10 mm, Size 25: 12 mm, Size 32/40: 16 mm)
- Protocol: P (PROFINET)
- Lead time: 10 days
- Country of origin: CZ
