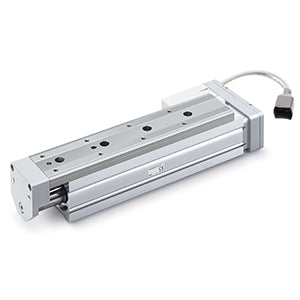

SMC · Slide Tables
LESYH8D2EA-75C-R5CP18
excl. VAT · €1.853,87 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | LESYH8D2EA-75C-R5CP18 |
|---|
Oriented to standard applications with precission need
Features
- Body size: 8, 16 and 25 mm
- Stroke: 50 to 150 mm
- Speed: up to 400 mm/s
- Acceleration: up to 5000 mm/s²
- Step motor type
- Encoder: battery-less.
Specifications
- Part number: LESYH8D2EA-75C-R5CP18
- Article no.: 02919936
- Mounting: 8 (DIN Rail)
- Stroke: 75 mm
- Motor Mounting Position: D2 (In-line, Right Side)
- Size: 8
- Lead: A (Size 8: 10mm, Size 16: 12mm, Size 25: 16mm)
- Motor Option: C (w/Motor Cover)
- Communication Plug Connector, I/O Cable: None
- Actuator Cable Type, Length: R5 (5m)
- Controller: CP1 (PROFINET)
- Lead time: 28 days
- Country of origin: JP
Documents
