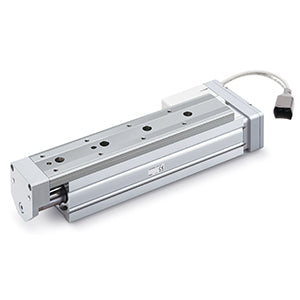

SMC · Slide Tables
LESYH8D2EA-75C-R5CEF8
excl. VAT · €1.900,81 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | LESYH8D2EA-75C-R5CEF8 |
|---|
Oriented to standard applications with precission need
Features
- Body size: 8, 16 and 25 mm
- Stroke: 50 to 150 mm
- Speed: up to 400 mm/s
- Acceleration: up to 5000 mm/s²
- Step motor type
- Encoder: battery-less.
Specifications
- Part number: LESYH8D2EA-75C-R5CEF8
- Mounting: 8 (DIN Rail)
- Stroke: 75 mm
- Motor Mounting Position: D2 (In-line, Right Side)
- Size: 8
- Lead: A (Size 8: 10mm, Size 16: 12mm, Size 25: 16mm)
- Motor Option: C (w/Motor Cover)
- Communication Plug Connector, I/O Cable: None
- Actuator Cable Type, Length: R5 (5m)
- Controller: CEF (EtherCAT® with STO Sub-Function)
Documents
More part numbers in this series
LESYH16DEA-100C-R5C6185€1.447,78LESYH16DEA-100C-R5C918€1.753,34LESYH16DEA-100C-R5C9F8€1.814,98LESYH16DEA-100C-R5CE18€1.758,79LESYH16DEA-100C-R5CEF8€1.819,89LESYH16DEA-100C-R5CL18€1.573,22LESYH16DEA-100C-R5CLF8€1.615,77LESYH16DEA-100C-R5CP18€1.780,77LESYH16DEA-100C-R5CPF8€1.841,49LESYH16DEA-50C-R5C6185€1.346,75LESYH16DEA-50C-R5C918€1.652,48LESYH16DEA-50C-R5C9F8€1.713,97LESYH16DEA-50C-R5CE18€1.657,93LESYH16DEA-50C-R5CEF8€1.718,88LESYH16DEA-50C-R5CL18€1.472,19
