SMC · Rotary Tables

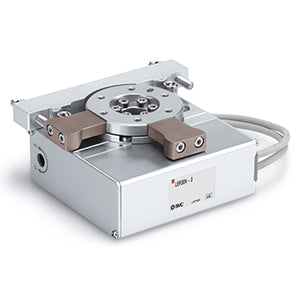

LER50EK-R5C6185
excl. VAT · €1.836,80 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | LER50EK-R5C6185 |
|---|
Body size: 10, 30 and 50 mm Positioning repeatability ± 0.03 mm Angular speed: up to 420 º/s Acceleration: up to 3000 mm/s² Rotation angle: 320º (battery-less type) and 360º (standard type) Compatible encoders: absolute, incremental Step motor type Compatible controllers: LECP1, LECPA and JXC#1.
Features
- Motor type: Battery-less absolute encoder (Step motor 24 VDC)
- Size: 50 mm
- Positioning angle: 320º.
Specifications
- Part number: LER50EK-R5C6185
- Article no.: 02710474
- Mounting: 8 (DIN Rail)
- Table Accuracy: Basic Type
- Actuator Cable type: R5 (5m)
- Communication Plug Connector, I/O Cable: 5 (I/O Cable, 5m)
- Controller: C61 [Parallel Input (PNP)]
- Rotation Angle: 320°
- Max. Rotating Torque: K (High Torque, 10 N▪m)
- Motor Cable Entry: Basic, Entry Right Side
- Lead time: 28 days
- Country of origin: JP
