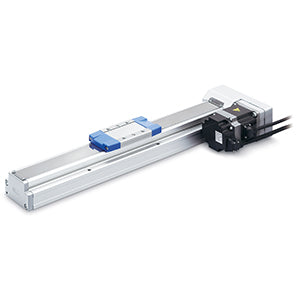

SMC · Slider Types
LEKFS32T7A-900-R5ED21
excl. VAT · €4.492,51 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | LEKFS32T7A-900-R5ED21 |
|---|
For positioning or transfer applications demanding precision, high speed and low maintenance.
Features
- Body size: 25, 32 and 40 mm
- Stroke: 50 to 1200 mm
- Acceleration: up to 20000 mm/s²
- Speed: up to 1500 mm/s
- AC servo motor
- Compatible encoder: absolute, incremental.
Specifications
- Part number: LEKFS32T7A-900-R5ED21
- I/O Connector: 1 (1.5 m)
- Stroke: 900 mm
- AC Servo Motor: T7 (200W Output, Absolute Encoder, LECSB2/C2/S2)
- Seal Band Stopper: Standard
- Motor Mounting Position: In-line
- Size: 32 mm
- Motor Option: w/o Lock
- Lead Screw: A (Size 25: 12 mm, Size 32: 16 mm, Size 40: 20 mm)
- Driver: ED2 (LECSND2-T-E/EtherCAT®, 200V to 240V)
- Actuator Cable Length: 5 (5 m)
- Actuator Cable: R (Robotic Flexible Cable)
Documents
More part numbers in this series
LEKFS32T7A-100-R59D21€3.299,50LEKFS32T7A-100-R5ED21€3.328,13LEKFS32T7A-100-R5PD21€3.299,50LEKFS32T7A-1000-R59D21€3.766,88LEKFS32T7A-1000-R5ED21€3.795,51LEKFS32T7A-1000-R5PD21€3.766,88LEKFS32T7A-150-R59D21€3.351,23LEKFS32T7A-150-R5ED21€3.379,86LEKFS32T7A-150-R5PD21€3.351,23LEKFS32T7A-200-R59D21€3.351,22LEKFS32T7A-200-R5ED21€3.379,85LEKFS32T7A-200-R5PD21€3.351,22LEKFS32T7A-300-R59D21€3.402,96LEKFS32T7A-300-R5ED21€3.431,59LEKFS32T7A-300-R5PD21€3.402,96
